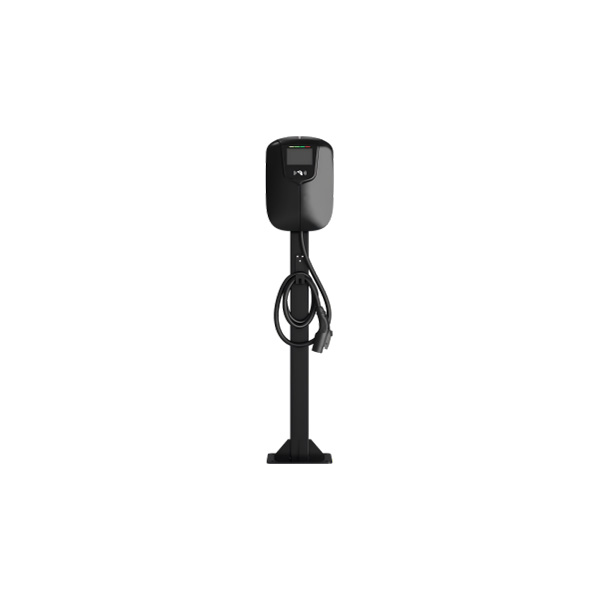

The AC charger delivers stable AC power to on-board chargers for electric vehicles. It is compact, easy to install, simple to operate,and suitable for residential, workplace, and public charging deployment.
The 14–42 kW AC EV charger is developed for residential, commercial, campus, and public charging projects that require higher charging efciency and greater deployment fexibility. It covers 14 kW and 42 kW power options and supports both single-gun and dual-gun confgurations, allowing installers to match the product to parking layout, charging volume, and site planning needs. The charger features a compact structure, easy installation, and a small footprint, making it suitable for both individual deployment and multi-space AC charging projects. It comes with a touchscreen display and a standard 5-meter cable, while APP and RFID start methods simplify daily operation. In terms of communication, it supports 4G, WiFi, Ethernet, Bluetooth, and OCPP 1.6J for platform integration, remote monitoring, frmware upgrades, and maintenance. Combined with IP55 protection and multiple safety functions such as short-circuit, overload, over-temperature, leakage, and voltage protection, it ofers reliable performance for both residential and commercial use.
The charger is typically composed of the main unit,charging connector, display,and control buttons. Its durable enclosure is designed for waterproof,dustproof, and anti-corrosion outdoor use. With real-time charging information and multiple protection functions, it offers reliable and stable operation.
| Parameter | Specification |
| Power | 14 kW/42 kW |
| Number of charging guns | Single/Double gun |
| Cable length | Standard configuration5m |
| Display | 4.3-inch touchscreen |
| Start method | APP/RFID |
| Connectivity | 4G/WiFi/Ethernet/Bluetooth |
| Network platform | WS /WSS OCPP 1.6J (OCPP 2.0 optional) |
| Input voltage | AC 220V±20% |
| Output current | 32A/63A |
| Input frequency | 48 Hz-65 Hz |
| Protection | Short circuit, overload, overheating, leakage current, overvoltage/undervoltage, etc. |
| Extended functions | DLB, PEN, AC PLC (ISO 15118-2/15118-20 dev.), PnC/V/2G/V2H (dev.) |
| Protection level | IP55 |
| Operating temperature | -20 Cto +50 C |
| Storage temperature | -40Cto+70C |
| Relative humidity | 5%-95% RH |
| Altitude | <=2000m |
| Installation | Wall/Column |
