The 14-42 kW dual-gun floor-standing AC charger is suitable for parking and semi-public scenarios, featuring pedestal installation,dual-gun output, and platform-ready operation.
The 14–42 kW dual-gun foor-standing AC charger is designed for parking lots, semi-public sites, ofce buildings, commercial parking areas, and community charging spaces that need to serve multiple parking bays efciently. Its pedestal-style structure provides stable installation and a professional appearance, while the dual-gun confguration improves single-unit service capacity and site utilization. Available in 14 kW and 42 kW versions, the charger is equipped with a 5-inch touchscreen and supports APP and RFID card start methods for easy daily operation. It also ofers 4G, WiFi, Ethernet, Bluetooth, and OCPP 1.6J compatibility, allowing convenient connection to operation platforms for centralized monitoring, data management, and remote maintenance. With IP54 protection and multiple safety functions, the unit is suitable for long-term outdoor use and provides a practical balance of usability, reliability, and commercial operation capability.

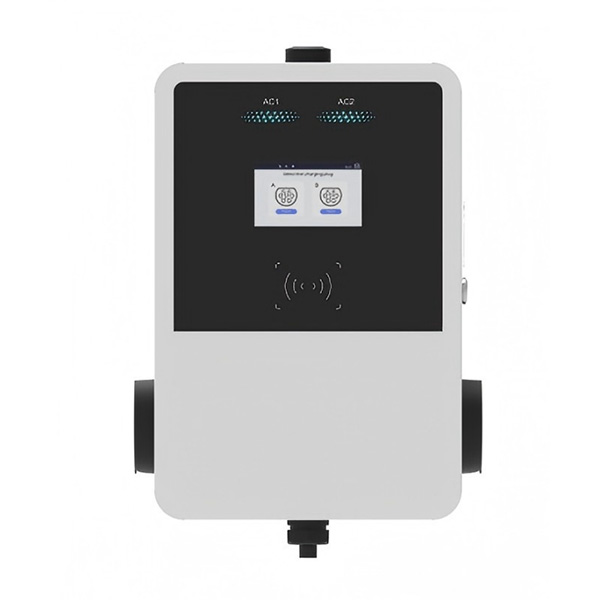

The charger is typically composed of the main unit,charging connector, display,and control buttons. Its durable enclosure is designed for waterproof,dustproof, and anti-corrosion outdoor use. With real-time charging information and multiple protection functions, it offers reliable and stable operation.
| Parameter | Specification |
| Power | 14 kW/42 kW |
| Number of charging guns | Double gun |
| Gun type | Gun outlet (standard 5 m gun cable) / mounting base |
| Display | 5-inch touchscreen |
| Start method | APP/RFID |
| Connectivity | 4G/WiFi/Ethernet/Bluetooth |
| Network platform | WS/WSS OCPP 1.6J (OCPP 2.0 optional) |
| Input voltage | AC 220V±20% |
| Output current | 32A/63A |
| Input frequency | 48 Hz-65 Hz |
| Protection | Short circuit, overload, overtemperature, leakage current, overvoltage/undervoltage, etc |
| Extended functions | DLB, PEN, AC PLC (ISO 15118-2/15118-20 dev.), PnC/V2G/V2H (dev.) |
| Protection level | IP54 |
| Operating temperature | -20 Cto +50 C |
| Storage temperature | -40 Cto +70C |
| Relative humidity | 5%-95% RH |
| Altitude | <=2000m |
| Installation | Floor-standing |
