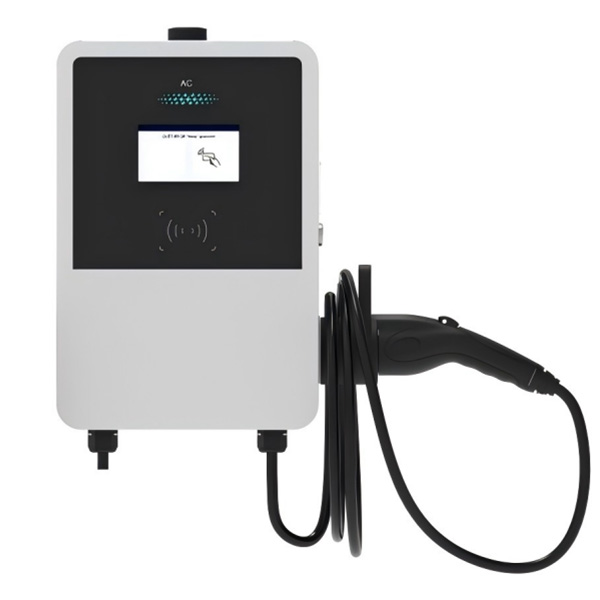

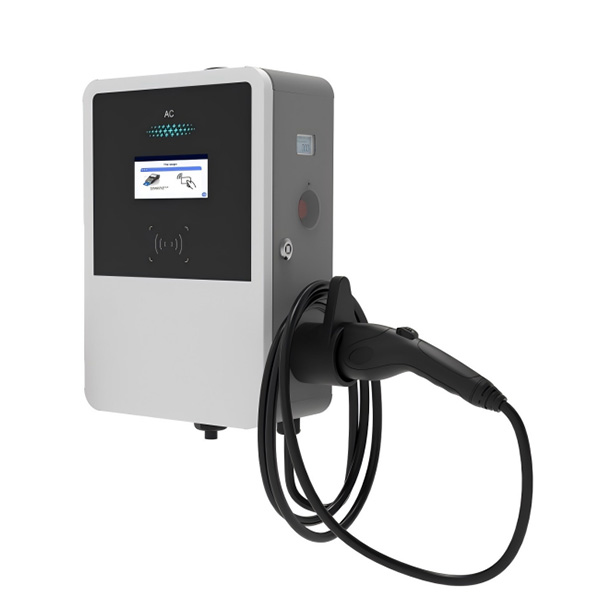

The 43 kW AC charger is built for high-power AC charging scenarios,with single-gun output, smart connectivity, and extended capabilities for commercial and public AC charging deployment.

The 43 kW AC EV charger is a commercial-grade solution designed for high-power AC charging projects that demand both stronger charging output and broader system integration. It is especially suitable for commercial parking lots, public AC charging sites, office parks, and mixed-use parking environments where efficiency and expandability are both important. Built in a single-gun configuration, the charger offers 43 kW output for vehicles that support higher AC charging power, helping reduce charging time within AC applications. The unit includes a 5-inch touchscreen and a standard 5 m cable, and supports APP and RFID start methods for convenient daily use. It also provides 4G, WiFi, Ethernet, and Bluetooth connectivity for platform access and remote management. Beyond standard charging functions, this model supports solar integration, home load balancing, PEN no-grounding, AC PLC, 485 Modbus / Modbus TCP, and EMS connection, making it suitable for projects that need coordination with energy systems, building systems, or operator platforms. With IP54 protection and IK08 impact resistance, it remains reliable in outdoor environments while delivering a premium combination of power, connectivity, and expandability.
This model provides higher AC power output and supports solar access,dynamic load balancing, PEN no-grounding, and EMS /Modbus integration for projects requiring stronger expandability.

| Parameter | Specification |
| Power | 43 kW |
| Number of charging guns | Single gun |
| Gun type | Standard configuration 5m Gun line |
| Display | 5-inch touchscreen |
| Start method | APP/RFID |
| Connectivity | 4G/WiFi/Ethernet/Bluetooth |
| Network platform | WS/WSS OCPP 1.6J (OCPP 2.0 optional) |
| Input voltage | AC 380 V±10% |
| Output current | 0-63A |
| Input frequency | 48 Hz-65 Hz |
| Protection | Short circuit, overload, overtemperature, leakage current, overvoltage/undervoltage, etc |
| Extended functions | PEN,Home load balancing, solar, AC PLC,485 Modbus/Modbus TCP,EMS |
| Protection level | IP54 |
| Impact protection | IK08 |
| Operating temperature | -20 Cto +50 C |
| Storage temperature | -40 Cto +70C |
| Relative humidity | 5%-95% RH |
| Altitude | <=2000m |
| Product dimension | 460x180x310mm |
| Package dimension | 625x484x380mm |
| Certification | EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018 |
