The 7-22 kW AC charger delivers stable AC power to on-board chargers for electric vehicles. It is compact, easy to install, simple to operate, and suitable for residential, workplace, and public charging deployment.

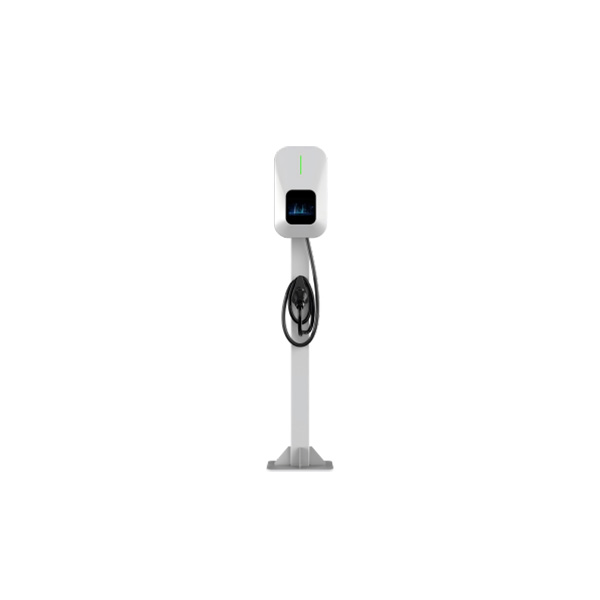

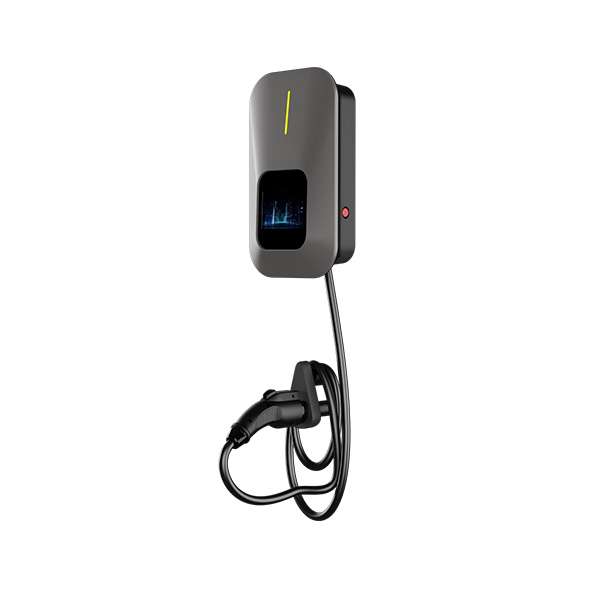

The 7–22 kW smart AC charger is designed for residential driveways, ofce buildings, commercial parking lots, and public AC charging points. It provides stable and safe AC power to the on-board charger of electric vehicles and is available in 7 kW, 11 kW, and 22 kW confgurations, allowing fexible selection according to project capacity, vehicle type, and charging frequency. Its compact body occupies little space and supports both wall-mounted and pedestal installation, making it suitable for home charging, property-managed sites, and light commercial deployment. The unit is equipped with a 5-meter charging cable, a touchscreen interface, and convenient start methods such as APP control, RFID card access, and scheduled charging. With 4G, WiFi, Ethernet, Bluetooth, and OCPP 1.6J connectivity, it is easy to integrate into an operation platform for remote monitoring, upgrades, diagnostics, and maintenance. The IP55 enclosure and multiple electrical protection functions ensure stable long-term outdoor performance.
The charger is typically composed of the main unit, charging connector, display, and control buttons. Its durable enclosure is designed for waterproof, dustproof, and anti-corrosion outdoor use. With real-time charging information and multiple protection functions, it offers reliable and stable operation.
|
Charging station — 7-22kW AC charging station |
|
| Power | 7kw/11kw/22kw |
| Number of rechargeable guns | Single gun |
| Gun line length | Standard configuration 5m |
| Display method | 4.3-inch touchscreen |
| Startup method | APP/Card Swiping |
| Networking method | 4G Wi-Fi Ethernet Bluetooth |
| Network platform | WS/WSS OCPP1.6J（ocpp2.0 optional） |
| Input voltage | AC220V±20% |
| Output current | 16A/32A |
| Input frequency | 48Hz-65Hz |
| Protection function | Short circuit, overload, over temperature, leakage, overvoltage, etc. |
| Extended function | DLB, PEN, AC PLC (ISO15118-2/ISO15118-20 (under development), supports PNC/V2G/V2H (under development)) |
| Protection level | IP55 |
| Operating temperature | -20℃～+50℃ |
| Storage temperature | -40℃～+70℃ |
| Relative humidity | 5℃～+95℃ |
| Altitude | ≤2000m |
| Installation method | Wall/Column |
